Chipir phase 2 instrument technical information


Technical Summary

The community has proposed two ‘modes of operation’: A collimated ‘pencil’ neutron beam within a containment blockhouse (this is a ‘standard’ design and the approach adopted by other facilities), and a beam-line that additionally provides a large, reasonably isotropic flood of neutrons by the use of additional movable secondary scatters; this would be unique to ISIS and would allow very large systems to be tested.

Instrument Parameters

BeamlineEnergy Range0-800MeV matched to atmospheric spectrum
ModesCollimated ‘Pencil  beam’ (up to 250x250mm2)'
'Flood beam' (up to 1000x1000mm2)
FiltersFour independently selectable filters to remove thermal neutrons from the incident beam
CollimatorFully variable collimation from 1x1mm2 to 250x250mm2
Multiple Selection of beam size from 250x250mm2 to 1000x1000mm2
DUT Experimental
RoomShielded  open space allowing flexible use for DUT requirements
Camera and intercom link to data collection area and Pod
Air conditioned
Sample PositionsTwo main sample positions

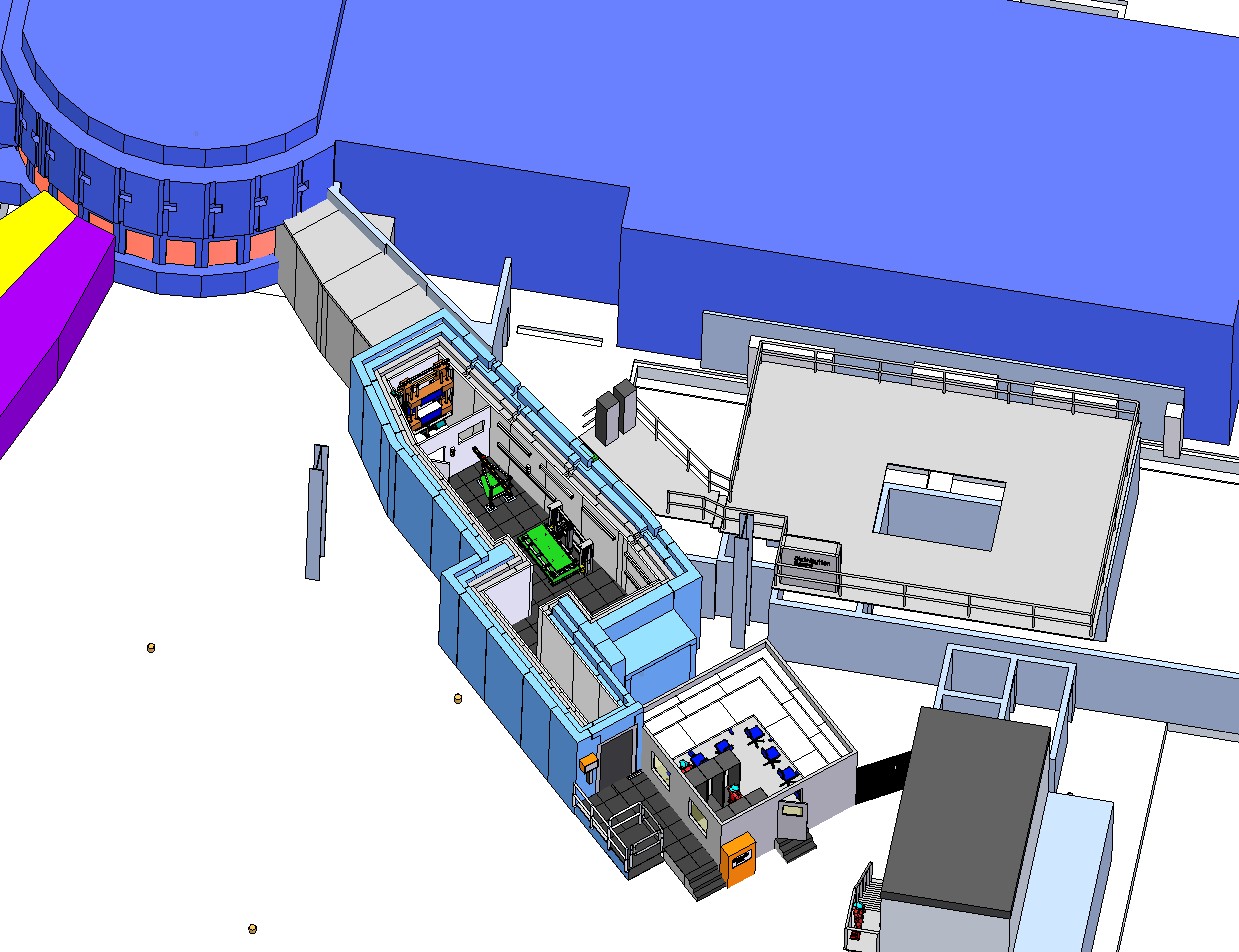

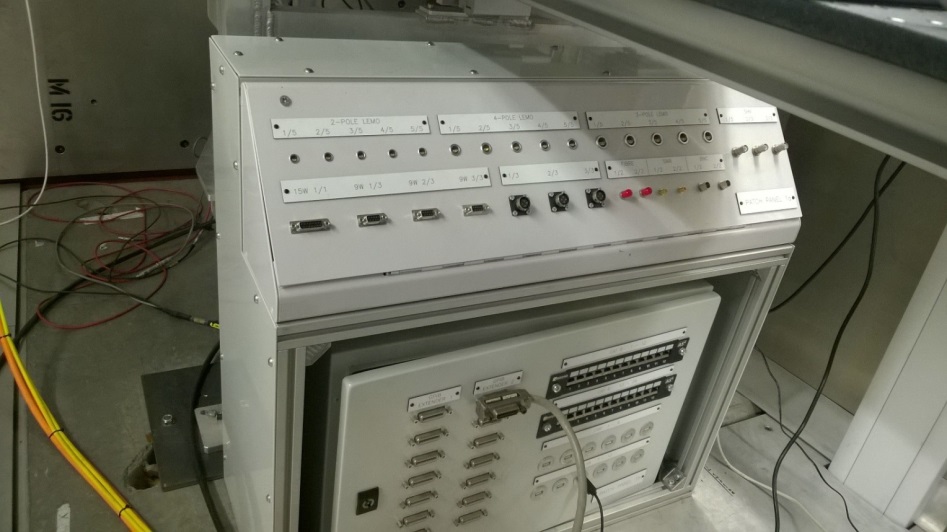

CablingTwo ‘patch panels’ for each position providing fixed multiple links to data collection areas (e.g. CAT5, USB, SHV..)
user accessible cable runs to data collection area
Ethernet (to data collection room and internet)

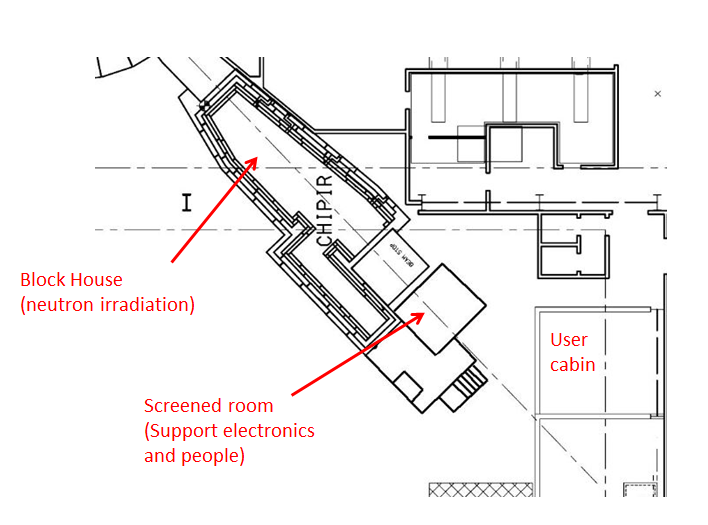

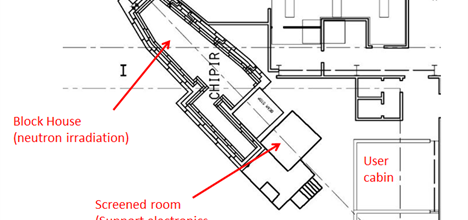

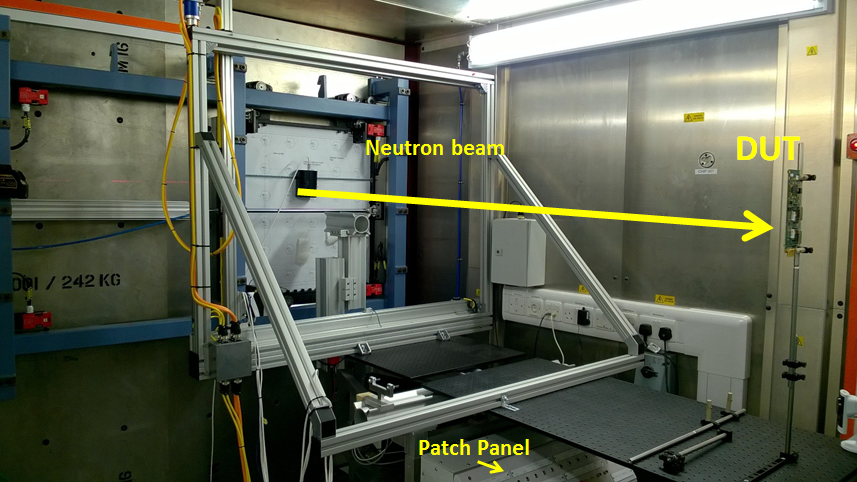

Sample Position 1 (Front position)Flexible optical table breadboard to allow easy positioning of DUTs. Automated computer controlled positioning available.
Sample Position 2 (Back position)XYZ fully automated positioning table about to take 500kg load.(Z allows  1400mm movement; X and Y allow +/- 250mm movement)
EU and UK Power sockets on table
PowerMultiple EU, UK and 110V US supply
EquipmentVariety of power supplies, oscilloscopes, HV supplies, voltmeters available and additional needs on request
USB and GPIB communication equipment
Data Collection
RoomEMC shielded room with air conditioning
Work stationsThree independent workstations with multiple provision of power, USB, ethernet ect.
CablingTwo ‘patch panels’ for each position providing fixed multiple links to DUT experimental area (e.g. CAT5, USB, SHV..)
PowerMultiple EU and UK power
Dosimetry and TOF informationDosimetry  data collection and provision of main ISIS timing signals and flux information
User RoomRoomIndependent user area for use during experiment
Provision of computers and Ethernet
Comfortable seated area
Close proximity to refreshment areas
Links to experimental and data collection areas via intercom
