The following are the types of Gas Handling high temperature centre sticks that we have to offer. These are used with our vacuum furnaces.

No
Furnace Centre Sticks​


If you have any questions or you think want to use one of these sticks in your experiment, please contact the pressure and furnace group.

Insitu (catalyst rig)

Recent User programmes for in-situ neutron studies of chemical and catalytic reactions have driven an in-house programme to develop PC controlled systems which incorporate both mass flow and pressure regulation. In parallel we have also developed internally coated cell designs specifically tailored to this need.

Centre Stick Description Working parameters Number of

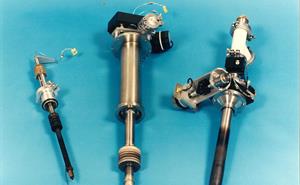

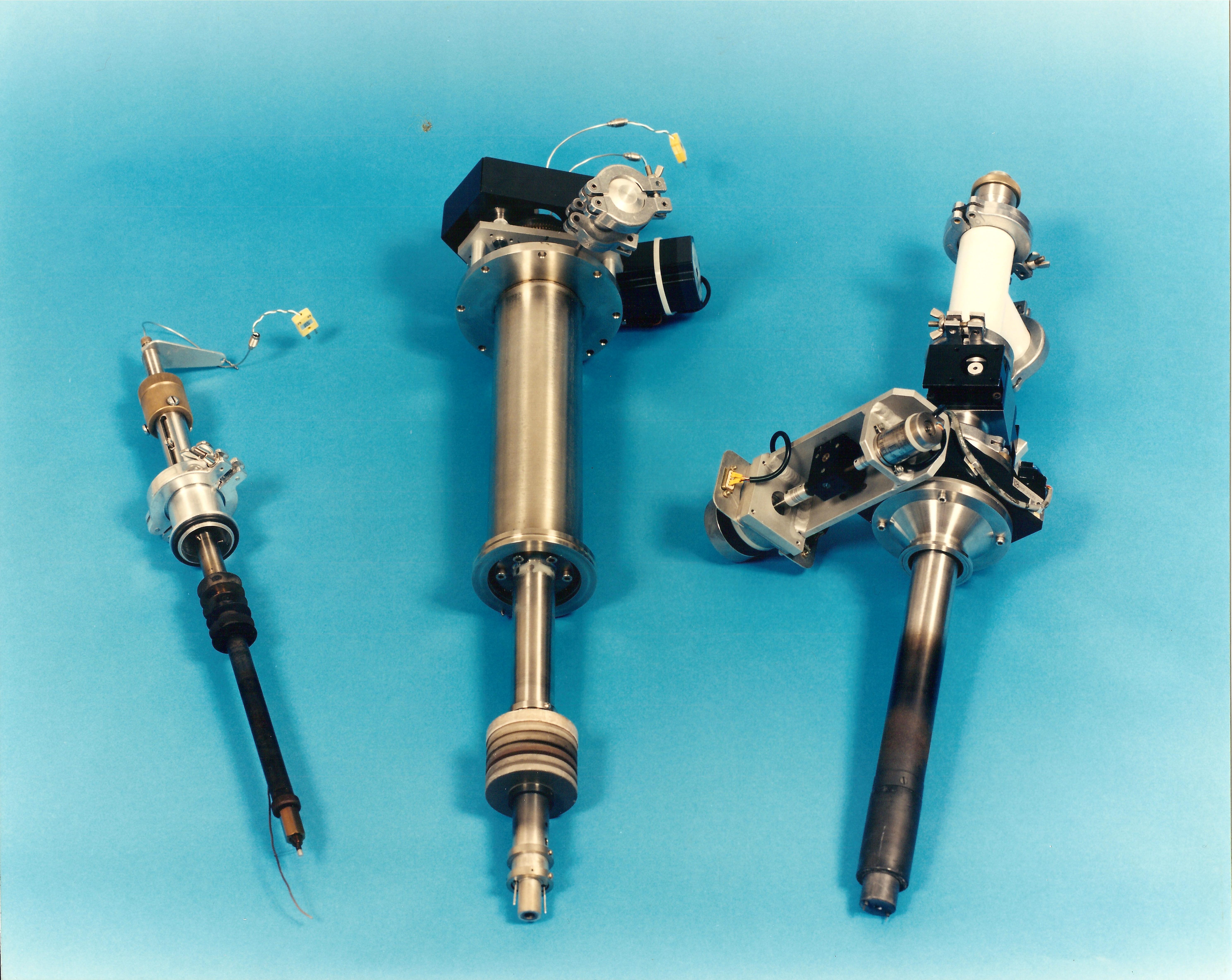

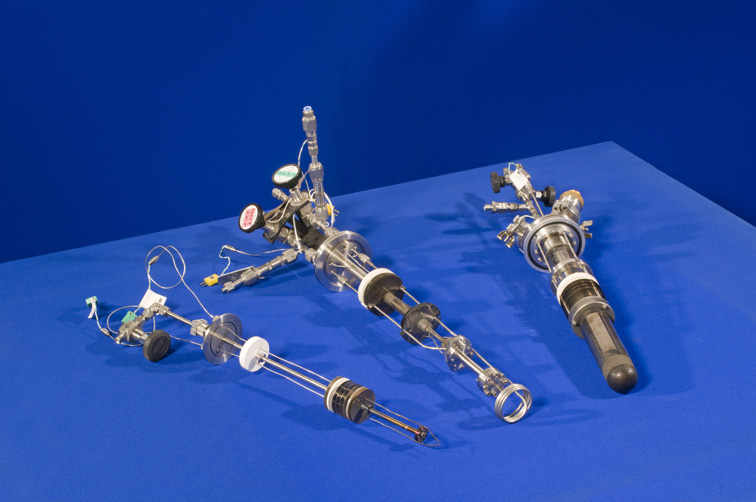

Furnace centre sticks Various centre sticks for furnace work Room temp to 1000°C 26
Furnace gas handling centre sticks Various centre sticks for furnace/ gas handling work Room temp to 1000°C up to 200 bar. 20

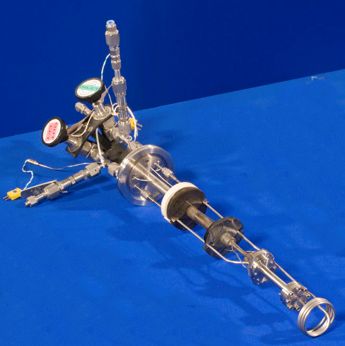

Insitu centre stick Gas handling centre stick for flowing gas whilst in a furnace (Stainless Steel) Room temp to 1000°C up to 5 bar. 2

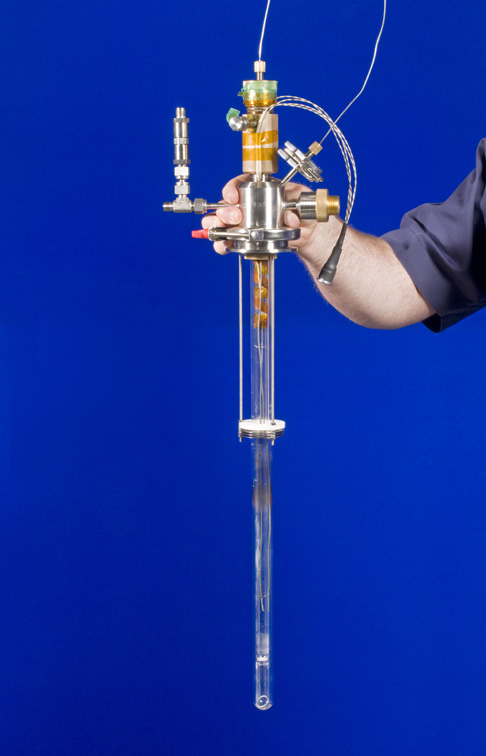

Gas Flow Centre Stick Gas handling centre stick for flowing gas whilst in a furnace (Quartz) Gem, Polaris & Ral2 Room temp to 1000°C up to 1 bar 4

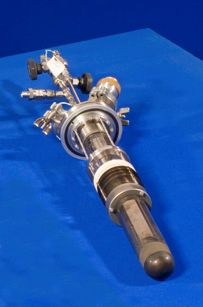

Resistance insert Quartz cell with internal resistance measurement system for use in RAL 3 or 4. Room temp to 1000°C up to 1 bar 2
