High Pressure Cells​

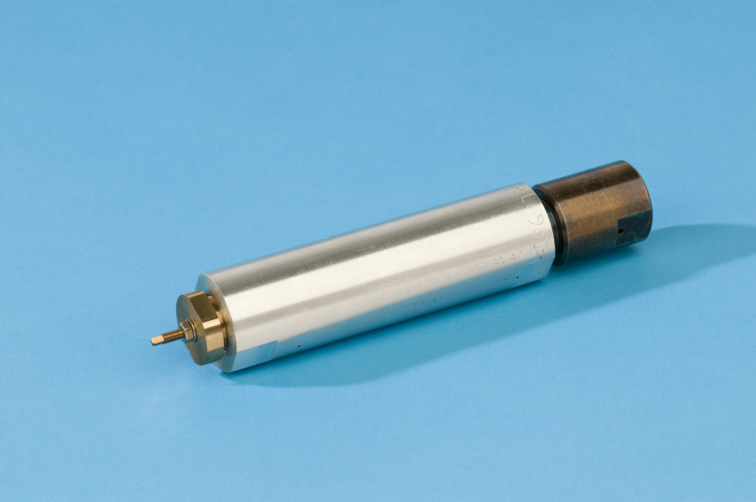

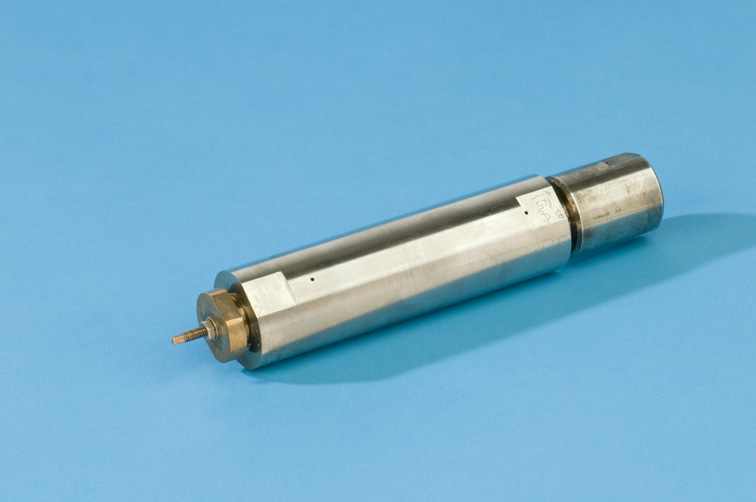

The cells shown below are examples of the high pressure cells available at ISIS. The titanium Zirconium (TiZr) cells are used on the diffraction type instruments and the 7075 aluminum alloy cells are used for spectroscopy experiments. These cells can be used for powder, liquid and crystal samples.

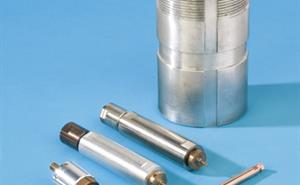

The photograph shows non standard variations of the other TiZr and aluminum 7075 alloy cells shown. The working temperature range of the cells is from 2K to 300K.

Material

Max working pressure at room temperature

Sample volume (approx)
and sample space dimensions

Other info

TiZr

5,600bar

1.54cc
Ø7mm x 40mm

No Hydrogen
Null scattering alloy

TiZr 5,000bar Flat geometry with 6 vertical holes N/A
BeCu 5,000bar Ø3mm x 12mm For use in SQUID

7075 Al Alloy

4,500bar

1.54cc
Ø7mm x 40mm

N/A

Inconel 7,360bar 1.54cc
Ø7mm x 40mm
N/A
Be/Cu 7,360bar 1.54cc
Ø7mm x 40mm
Hydrogen compatible
Be/Cu and TiZr two layer cell 8000 bar 1.54cc
Ø7mm x 40mm
Hydrogen compatible outer layer null scattering alloy
The cells named above only represent a small portion of what we have at ISIS. If you have any specific requirements or questions please contact Chris Goodway.
