Sample Changers and Cell Racks
26 Jul 2013
Yes
-



No
No

No
No

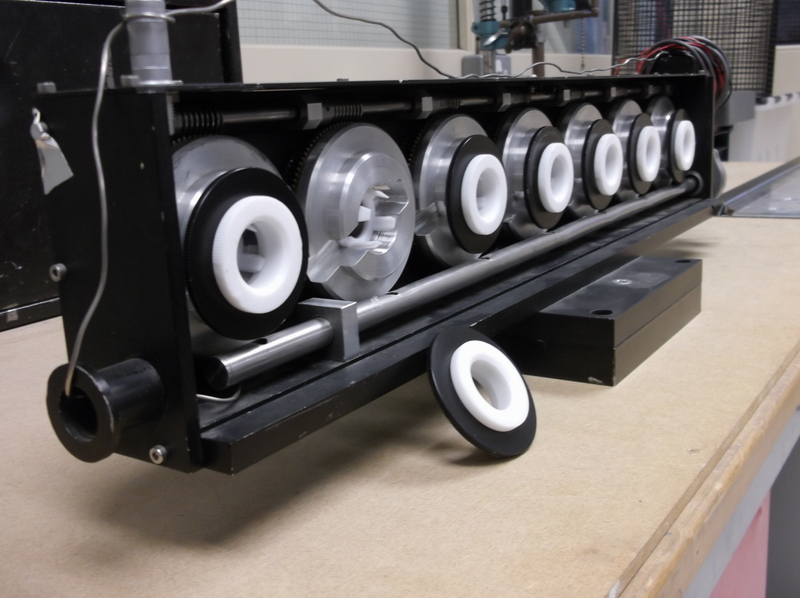

A multi-position rotating rack for seven cells is available. A four position static temperature stage may be used for heating up to 120°C

No

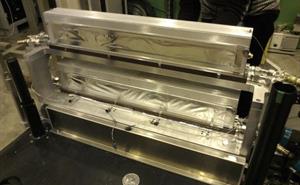

2 Tier Cell Rack​


ISIS has two sample changers for use with quartz cuvettes. The two tier version for SANS2D takes 40 samples and the single tier version for LOQ takes 20.

For further details/images please select the relevant link in the table below. If you think you may want to use any of this equipment for your experiment please contact the soft condensed matter team.

Changer/Rack

Number of Samples

Rotation

Temperature Range

Instrument

Two Tier Sample Changer

40

None

 -15 to 200°C

SANS2D

Single Tier Sample Changer – SANS

20

None



LOQ

Four Position Temperature Stage

4

None

RT to 120°C



Rotating Cell Rack

7

About beam axis;

0-130 rpm



SANS2D / LOQ

Contact:
