The dedicated ISIS SANS CO2 cell is based on the Thar SPM25 cell  and was a joint venture between ISIS, Thar and Scientific Medical.

No

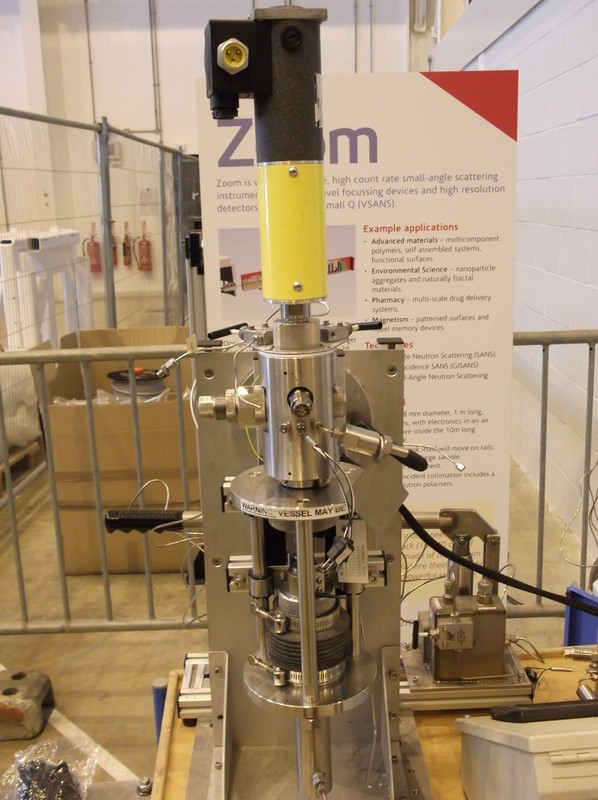

Thar pressure cell


It pressurises using CO2 and is able to go from 0-400 bar with stirring and 600 bar without. Electrical heaters allow the cell to be heated to150°C and recently installed copper cooling jacket allows the temperature to be controlled between 10 and 25°C.

Simple and reliable design allows quick installation on the beamline, fast sample changes and many measurements per experiment i.e. the cell is not the limiting factor for efficiency.

Name Gas Operating Pressure Temperature

Thar pressure cell

CO2

0-600 bar

10 to 150˚C
