Water Baths for Soft Matter
25 Jan 2010
Yes
-



No
No

No
No


Constant temperature circulators or water baths use an ethylene glycol mixture or refrigerant silicon oil and are suitable for temperature application to external systems with simultaneous operation inside the bath tank.

No

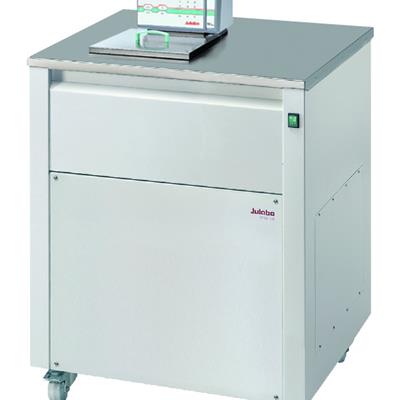

JULABO FPW55-SL Water Bath

​JULABO FPW55-SL Water Bath

JULABO

The water bath unit can provide high heating or cooling capacities to ensure rapid heat-up and cool-down times. Temperature applications can be carried out internally in the bath itself if space allows or externally to closed systems, for example sample changers or liquid troughs.​

The following water baths are all used for soft matter experiments and are each dedicated to a specific instrument. If you think you may want to use a water bath on a different instrument or have any other queries please contact the sample environment team or your instrument scientist to discuss your requirements.

Water Bath

USED ON

MAKE

MODEL

MIN TEMP

MAX TEMP

WB 1

LARGE SCALE STRUCTURES LAB

HAAKE

F3-C

-20 C

90 C

WB 7

SURF

JULABO

FP50-MH

-30 C

90 C

WB 9

SURF

HAAKE

N6-C41

-14 C

90 C

WB 12 NIMA/ BAM R55 Soft Matter Lab JULABO F25-HD

WB 13

LOQ

JULABO

FP52-SP

-25 C

90 C

WB 14

LOQ

JULABO

FP52-SL

-40 C

90 C

WB 15

SANS 2D

JULABO

FPW55-SL

-40 C

90 C

WB 16

SANS 2D

JULABO

FPW55-SL

-40 C

90 C

WB 17

OFFSPEC

JULABO

FB50-HE

-40 C

90 C

WB 18

INTER

JULABO

FB50-HE

-40 C

90 C

WB 23 POLREF JULABO FP50-HE -40 C 90 C
WB 24 OFFSPEC RF System JULABO FL300
WB 25 OFFSPEC Blockhouse JULABO FL1703 -40 C 90 C
WB 26 THAR Cell LOQ/ SANS2D JULABO FL300 -40 C 90 C
WB 27 Soft Matter Pool Grant R5 GR150 -40 C 90 C
WB 28 Rheometer LOQ/ SANS2D Viscotherm VT2 -40 C 90 C
WB 30 SURF on top of shielding JULABO FP50-HE -40 C 90 C
WB 31 LARMOR JULABO FP51-SL -40 C 90 C

We would like to thank JULABO for the use of their photos on this page.
